Intelligent Coloration Thermal Imaging Add On Scope Thumb - Stick System Controlled
Description
NightSeer Clip-On Systems are advanced Thermal devices designed for viewing, target acquisition and engagement at nigh. If SWaP (Size, Weight, and Power) is your concern, NightSeer is a perfect choice — compact enough to fit in the palm of your hand and boasting a durable, rugged design, the NightSeer is constructed with maneuverability in mind, and is perfect for hard-working professionals. Hunters on the lookout for a great value should try the NightSeer, a precision thermal device showcasing incredible optics along with all of the other great features expected of the entire NightSeer Clip-On line; Whatever your needs, Nightseer Clip-On Systems get the job done.
Features
▼Can be utilized over medium (35mm), or long (50mm) distance in conjunction with broad-range, direct-view (day time) scopes and sights
▼ All NightSeer Clip-On systems excel in performance, versatility, reliability, features, and value
▼ Ergonomic design with five-position thumbstick for one-hand operation

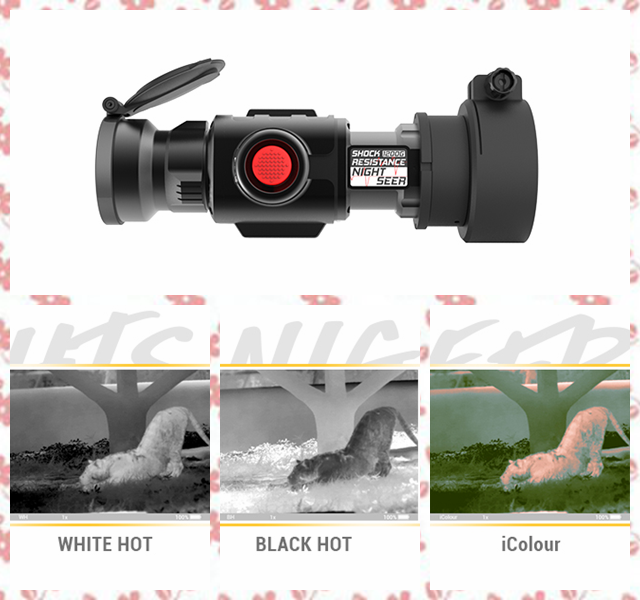

▼ Color modes: White Hot/ Black Hot/ iColor modes
▼ Rapid start-up
▼Display type: 1024X768
▼ Two-Year Warranty
Technical Data
Thermal Imager Scope NightSeer 350 Series
Technical Data Sheet |
| | NS350-C |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 50mm, F/1.1 |
| Magnification, X | 1 |

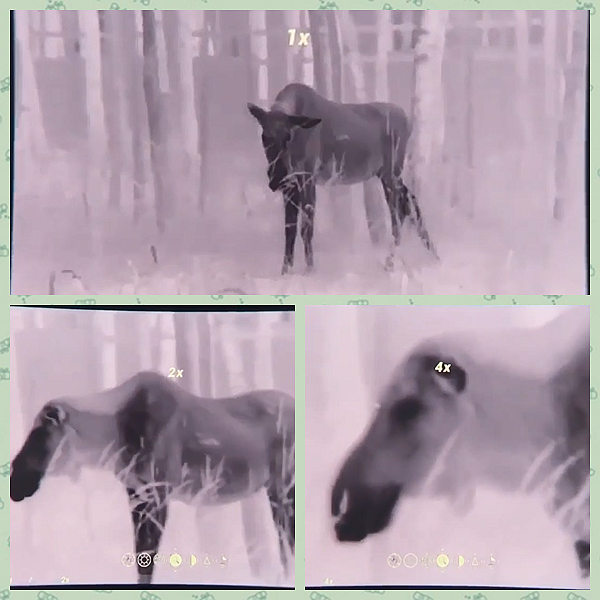

| Zoom | 2x/PIP/4x |
| Eye Relief, mm | 24mm |
| Dioptre Adjustment, D | / |
| FOV | 7.4°×5.6° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6~7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set(standard version),h | 5 |
| Operation Time on external battery pack(standard version),h(13000mAh) | 44 |
| Video recorder(optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —25°C~+50°C |
| Storage Temperature | —40°C~+70°C |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 425 |
| Dimension, mm | 167×65×67
|
Thermal Clip On Quality Control
It is our mission to continue to design, build, test and ship the very best optoelectronic devices on the market.
We understand that, in some cases, lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
